Product Details:
|
| Type: | Camera Monitor System | Car Fitment: | Universal |
|---|---|---|---|
| View Angle: | 120°-170° | Including: | 2 Monitor + 2 Cameras |
| Voltage: | 12V | Supported: | BSD |
| Maximum Current: | <800mA@12V | ||
| High Light: | 510mA Rear View Mirror Camera System,800mA Rear View Mirror Camera System,digital camera system 12V |
||
BSD Multiple Color Frame Prompt Digital AI Electronic Rear View Mirror Camera System
Multiple color frame prompt
In the intelligent electronic rearview mirror, different colors indicate different distances, from near to far away from the vehicle body, followed by red, yellow, and blue, which can assist the driver to indicate the approximate distance of danger, as shown in the picture below
Low-Latency High-Definition Digital Transmission
The intelligent electronic rearview mirror has a very low transmission delay and can display the blind spot information around the car body in real time.
Dynamic Alarm
During the operation of the intelligent electronic rearview mirror, it can prompt or alarm the possible danger. When the turn signal is issued, after the intelligent electronic rearview mirror recognizes the possible danger, the buzzer will issue a second-level alarm. When the distance is long, it will prompt danger and issue a first-level alarm.
Rear View Mirror Camera System Parameters
| operating voltage | 9-30V |
| rated current | 510mA@12V |
| host size | 138X88X25mm |
| maximum current | <800mA@12V |
| quiescent current | 100uA |
| operating temperature | -20~70－ |
| video signal | coaxial digital AVT |
| video output | 1440X810X60FPS@5.7' |
| delay | 80ms |
| capture distance | >30M |
| alarm method | buzzer |
Blind Spot Detection
Within the inspection range of the intelligent electronic rearview mirror, pedestrians, motorcycles, cars, trucks wheel, etc. behind can be monitored in real time to prevent accidents, and the vehicle can be accurately identified and tracked regardless of whether the vehicle is stationary or moving
What is rear view mirror camera system?
Electronic AI rear view mirror camera system is designed to replace the tranditional rear view mirror, to show the outside surrouding of the car clearly. A camera is attached to the rear of the vehicle and displays images on a LCD monitor built into the rearview mirror. Imagery from the camera offers clear visibility of a wide area.
Rear View Mirror Camera System Features
1. BSD blind spot detection
2. Dynamic alarm
3. LCA lance change assist
4. Adjust camera angle at any tijme
5. Low latency high definition digital transmission
6. Multiple color frame prompt
7. Ultra clear night vision
E-Side Mirror System is designed for replacing traditional rearview mirror.
| Use | for car system upgraded |
| Functions | Camera monitor system |
| Video Format | LVDS |
| Camera Format | PAL |
| Installation | plug and play, comes with connector and cable |
| Camera Angle | 120°-170° |
| AV input | left / right cameras |
| BSD | Danger distance alarm |
| Warranty | 12 Months |
| Suitable Vehicles | Car, Vehicle |
| Sample Including | Sample includes cables |
Rear View Mirror Camera System
1. monitor x2

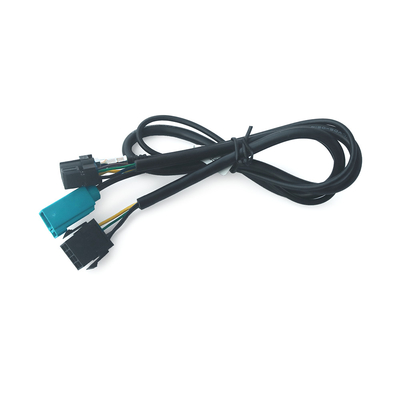

2. MFC01-LCD power harness x 2
3. MFC01-LCD CANBUS extension harness x 2
4. camera x 2
5. 3M glue x 2
6. MFC01-LCD camera extension cable x 2
7. MFC01-LCD housing holder x 2
8. knob x 1
9. battery x 1
10. MFC01-LCD harness tube x 2
